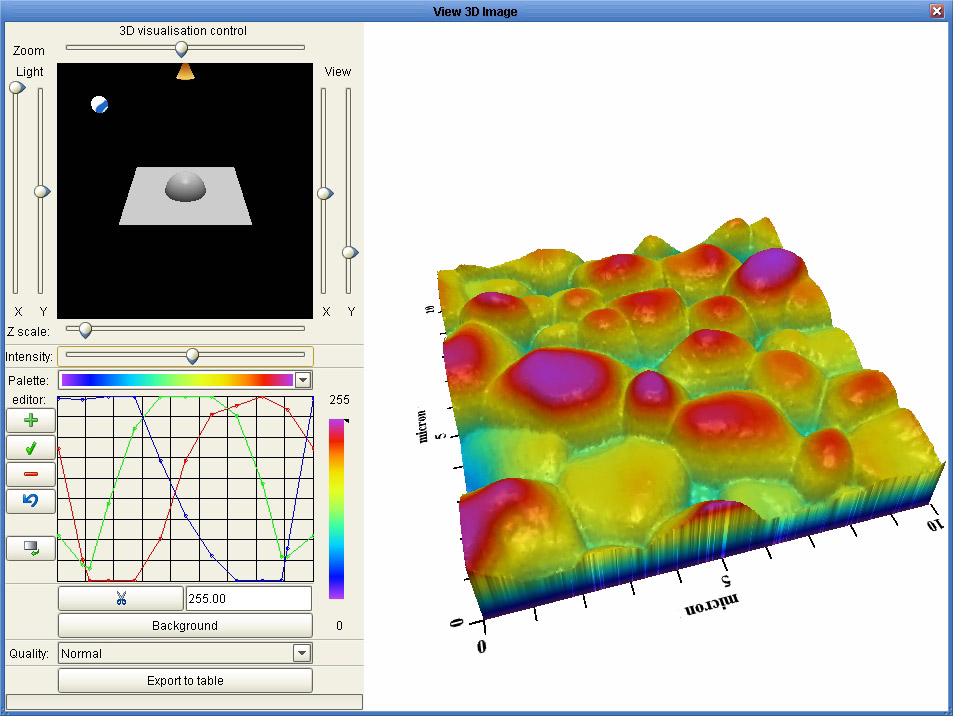

| 3D Image Viewer |
3D Image Viewer is designed to perform three-dimensional visualization of the images with depth aspect such as AFM,
TEM or Fluorescent.
Various surface visualization options are included to better demonstrate achieved results. The module includes surface tilt control tool that allows showing the
analyzed surface from any angle, with various tilt and magnification options. Additional settings allow changing surface and background colors, and image cropping
by height. 3D Image Viewer allows users to set up scale by any coordinate axes. Produced 3D images can be exported into Microsoft Word. |
|
|
 |

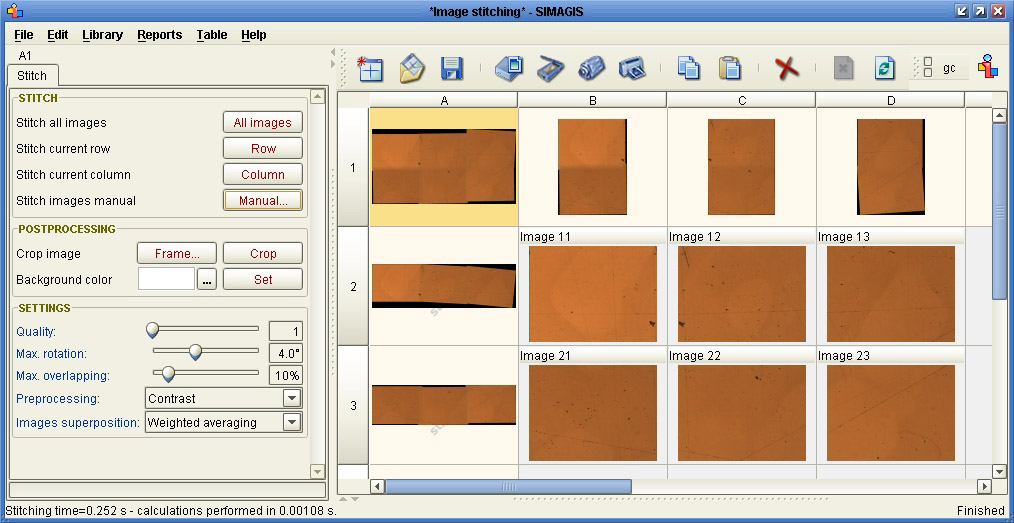

| Image
Stitching |

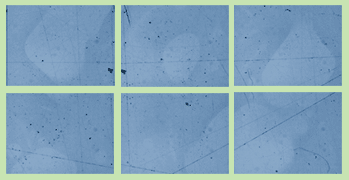

This tool is designed to stitch series
of panoramic or partially overlapping fragments into a single image,
either in automated or manual mode. This tool can be used with motorized
microscope stages for the step-by-step scanning of large objects.
Image Stitching is also helpful in cases when it is necessary to produce
images of large objects with high resolution. The module includes set of
built-in tools for customizing stitching parameters and facilitating
precise alignment of image fragments. Users can control permissible
angles of image rotation and image shift values, select methods for
image overlapping and stitching quality level. Postprocessing allows
cropping the produced image as necessary and selecting the background
color. |
 |
 |
|

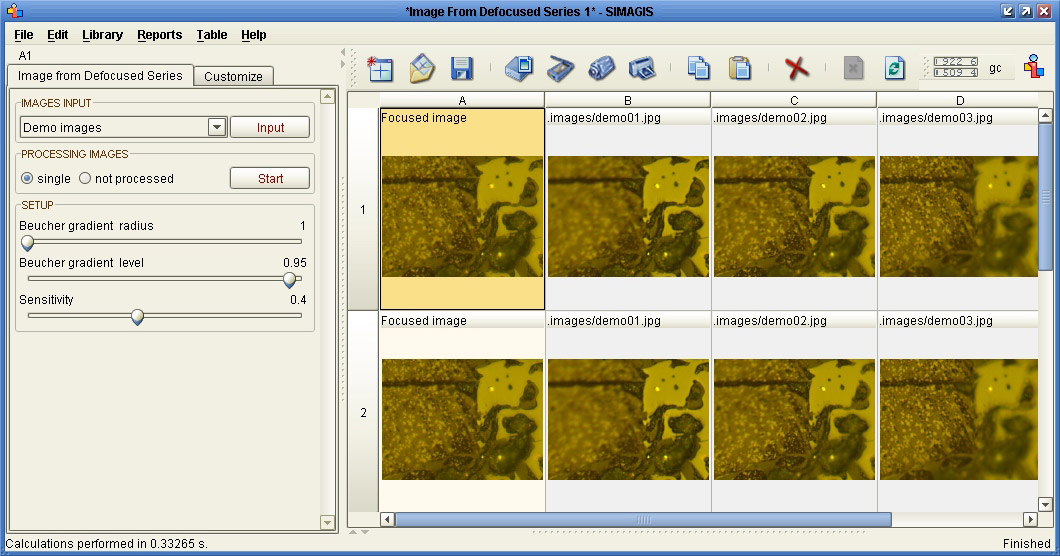

Focused Image Assembly Tool
|
| Automatic tool for reconstructing fully
focused image from image focus stack. This is useful tool for capturing
optical images with extended depth range such as biological objects and
uneven surfaces. |
 |
 |
|

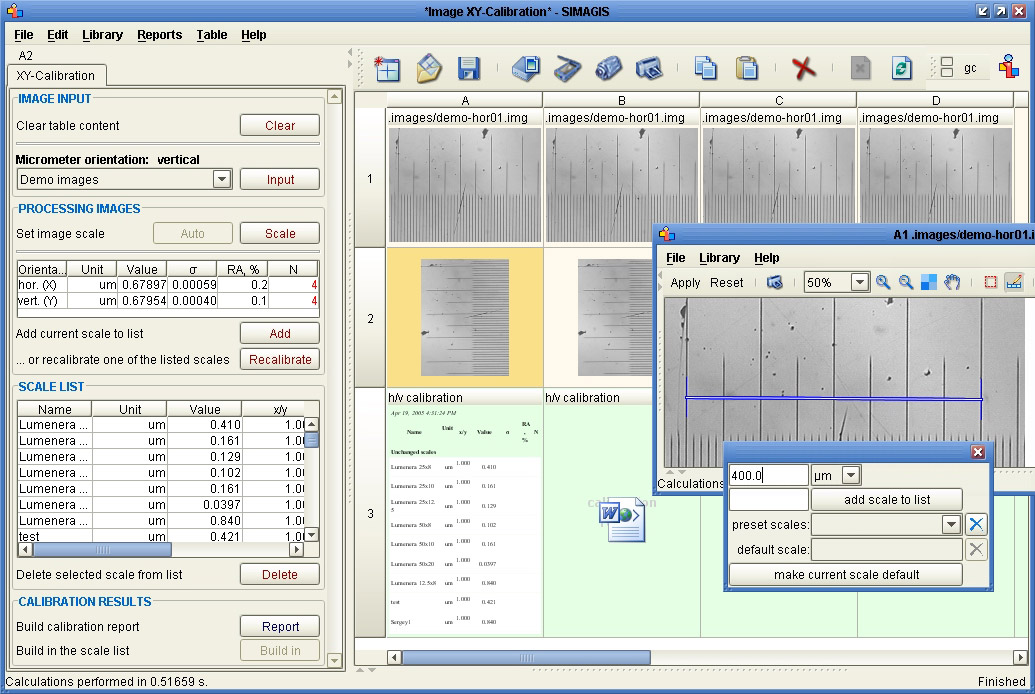

Image Scale-Calibration
|
 This
tool is designed to calibrate image input systems and measurement
scales. Reference calibrations of the image input system ensure accurate
measurements. The tool calibrates measurement scale comparing the series
of test scale images throughout full magnification range provided by
optical system. |
|

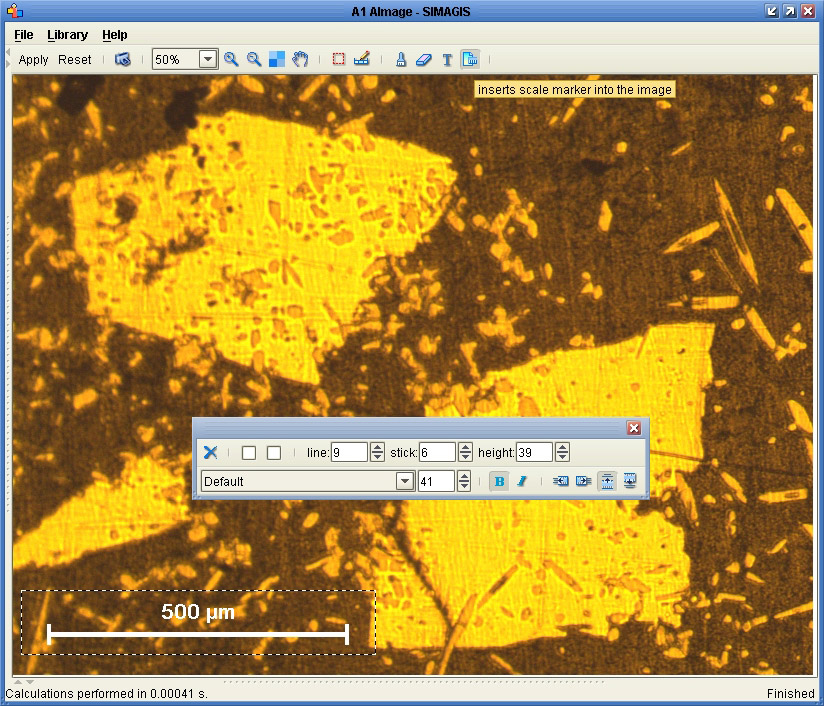

Annotation Tools
|
 This toolset allows users to create and edit image annotations. It provides text annotations, scale markers, and other information using customizable fonts and color palettes. |
|

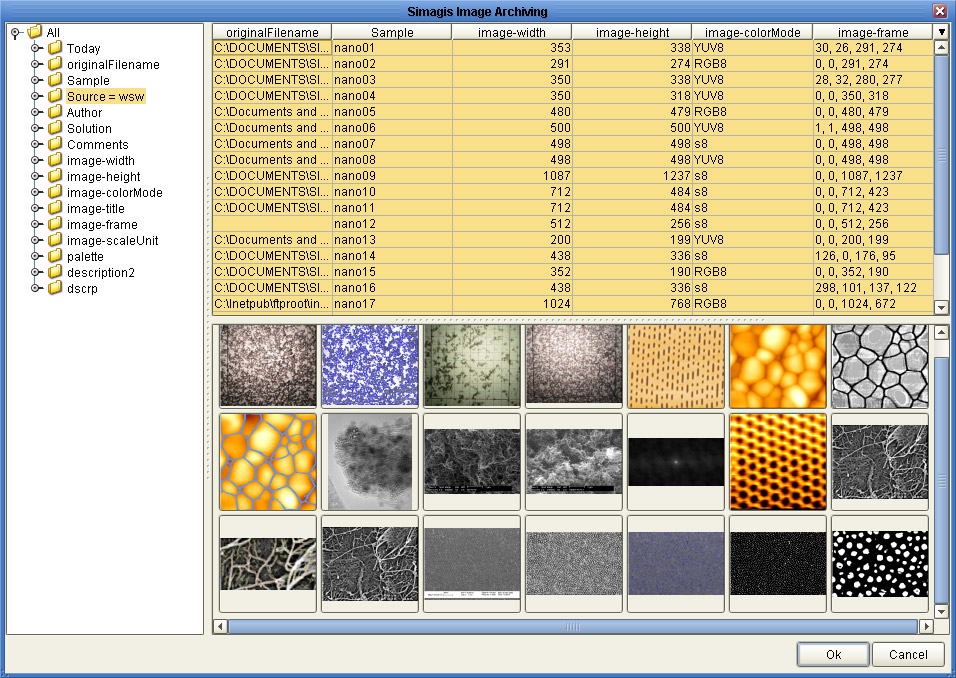

Image Archiving
|
 Image Archiving component provides categorizing, storage, access management, search and retrieval of imaging data and results of the analysis across the workgroup with version control, access log, edit history and other capabilities. |
|
Higher flexibility in operations with data
|
Export data into MS Excel
This new feature allows users to export textual and numeric data into MS Excel format.
Support AFM Data
SIMAGIS® supports AFM data formats of the leading atomic force microscope producers.
|
|
Fourier Analysis
|
New Fourier analysis group of functions is added to the function library and includes:
 |
Forward and backward Fourier transformations |
|
Filtering of Fourier spectrums with ability to create rejecter filter manually |
|
Analysis of Fourier spectrums |
|
Application and analysis of autocovariation |
|
Kepstral transformation |
|
Multifilter" function that simplifies use of Fourier filtering |
|
|
|
|
|
